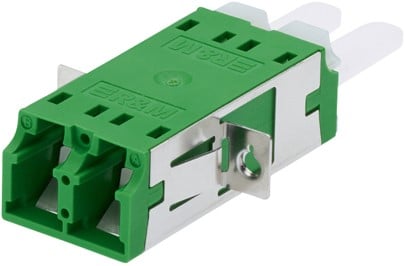

LC-Duplex singlemode adapter in acc. with IEC 61754-20.
Adapter body plus flange and integral quick-mounting clip and M2 thread, color metallic, material X10CrNi18-8.
Housing green (singlemode APC), materialPBT / UL 94 V-0, zirconia (ceramic) alignment sleeve, integral self-closing metal laser protection flaps, semi-transparent plastic dust covers, allowing optical testing with test lasers without removing the covers.
The adapter qualified in acc. with IEC 61753-1 for category U (uncontrolled environment).
Optical specifications:
Delta insertion loss: = 0.2 dB, testing method acc. to IEC 61300-3-4
Mechanical specifications:
Mating cycles: min. 500
Pull-out force: min. 70 N
Mating cycles: min. 500
Pull-out force: min. 70 N
Optional: Visual coding, mechanical coding and lock protection.
Technical Data.
Fiber type: Singlemode (SM)
Number of connectors (A): 1
Connector type (A): LC-Duplex
Connector color (A): green
Polishing plug (A): APC 8°
Protection class IP (A): IP 20
Attenuation grade IL (A): C
Connector class: adapter
Adapter fastening method: end cap
Sleeve material: ceramic
Mechanical Data
Dimensions 55.0 mm x 22.0 mm x 9.35 mm / 2.165 in x 0.866 in x 0.368 in (W x H x D)
Material steel: X10CrNi18-8 (1.4310) / plastic: PBT, fiber-glass reinforced (halogen-free)
Electrical Data.
Standard according to IEC 61754-20
