*Other lengths available on request*
Diamond E-2000® PS connector is designed for high power applications up to 6 Watts optical power for SM fibers.
This has been developed to support the continuous rise of higher bitrates and longer transmission distances within DWDM technology.
Diamond PS connectors are based on contacted expanded beam technology; where a section of graded index fiber is spliced as a collimating lens, which enlarges the beam diameter and reduces power density at the connector
interface. Using Diamond Active Core Alignment (ACA) technology, we can achieve unrivaled low IL performance for the PS technology by aligning the fiber exit angle instead of the core eccentricity as Diamond usually does on
SM fiber. This technology is applicable to most connectors interfaces, but due to safety issues Diamond suggeststo use it on E-2000® and F-3000® connectors with integrated metal protection caps and shutters.

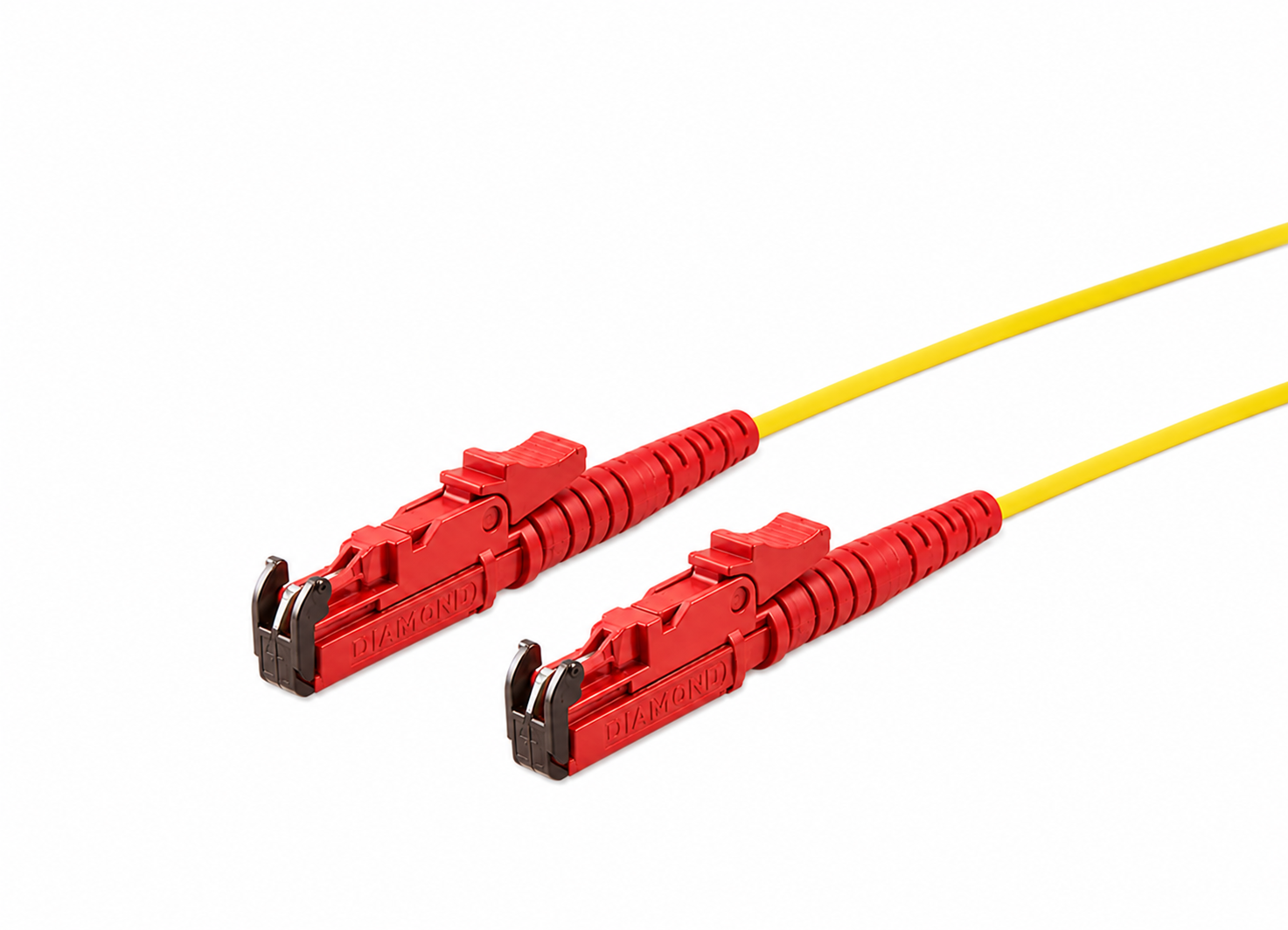

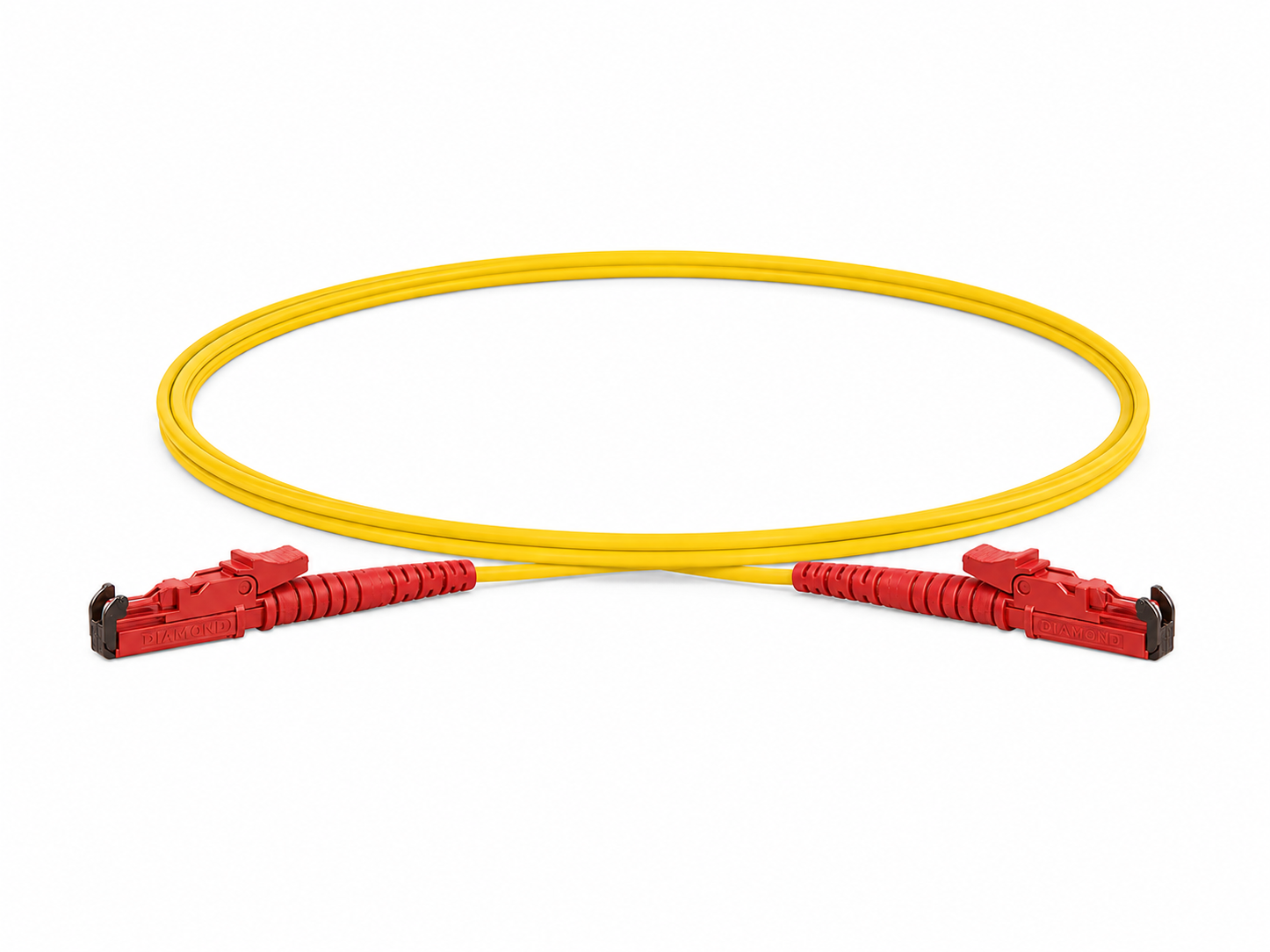

E-2000® PS connectors are available as simplex terminated connectors and backplane 2-6 channels
FEATURES AND BENEFITS
16x reduced power density
Low Insertion loss
Ultra high polish for High return loss
Integrated metal protection caps and Shutters
Interchangeable colour- and mechanical-coded frames and
thumb latches
STANDARDS
Passed long term test at 6W, 2000h
Passed Performance qualification according to IEC 61753-2-1, cat. U
Passed Reliability qualification according to IEC 62005-9-2, cat. U
Passed Long term Damp Heat according to Telcordia GR-032685°C /85% r.h. 2000h
